Home /Products/Heavy Duty Air Blower/Sewage Treatment Plant Use Ring Air Blower With IE3 Motor For Sewage Fermentation Treatment

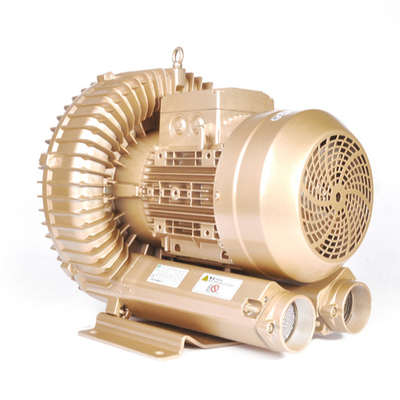

Sewage Treatment Plant Use Ring Air Blower With IE3 Motor For Sewage Fermentation Treatment

1 Piece
MOQ
Sewage Treatment Plant Use Ring Air Blower With IE3 Motor For Sewage Fermentation Treatment
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM
Rated Voltage: 345-415V/600-690V
Model Number: GHBH 011 36 1R9-IE3
Application: Sewage Treatment Plant
Pressure: Low Pressure
Power Source: Electric Blower
Model: GHBH 011 36 1R9
Frequency: 50/60
Voltage: Three Phase
Power: 8.5kW
Max Airflow: 1050m3/h
Max Vacuum: -190mbar
Max Pressure: -190mbar
Color: Golden/silvery
Lead-time: 7 Days
Weight: 93KGS
Basic Infomation
Model Number: GHBH 011 36 1R9-IE3, GHBH 011 36 1R9
Payment & Shipping Terms
Packaging Details: 1 piece/1 carton Gross weight:100kgs Net weight: 93kgs
Supply Ability: 200 Piece/Pieces per Day
Product Description
Products Description
Product Name
Sewage Treatment Plant Use Ring Air Blower With IE3 Motor For Wastewater Fermentation Treatment
Features
100% Copper Wire Motor, High Quality Bearings, Low Noise,
Energy-saving, Big Airflow, More Duable, More Safety.
Model
GHBH 011 36 1R9
Frequency
50Hz
Stage
Single stage
Phase
three phase
Rated Power
8.5kW
Rated Voltage
345-415△/600-690Y (V)
Rated Current
18.2△/10.5Y (A)
Max Airflow
1050m³/h
Max Vacuum
-190mbar
Max Pressure
190mbar
Sound
74db(A)
Weight
93kg
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.

Wastewater treatment

The aeration tanks in wastewater treatment plants are activated with oxygen by using compressed air. A thorough mixing of the sludge with oxygen increases the gas yield and reduces its retention time in the tank. Blower or low pressure screw compressor technologies can be found in fish process wastewater treatment plants.

GOORUI Side channel blowers are maintenance-free:

·External, permanently lubricated bearings ·Contactless rotating impellers ·Fan-cooled motors

GOORUI Side channel blowers are user-friendly:

·Weight-optimised design through aluminum pressure casting parts ·Possibility for a vertical or horizontal installation ·Suitability for converter operation

GOORUI Side channel blowers are environmentally friendly:

·Oil-free operation ·Low energy requirement ·Low noise emission

GOORUI Side channel blowers can be used world-wide:

·50/60Hz voltage range motors of the Iso class F ·Protection type IP55 with an integrated thermal protection switch (standard) ·CE, TUV, RoHS, CCC and ISO9001 certifications

Our advantages:

·A large selection of sizes ·Extensive accessoires ·100% check prior to delivery ·Spare parts are in stock ·Service in our facilities or on site ·Fast and reliable delivery

Optional Accessories:

We also have some parts for your application, if you need, welcome to tell me.
Air filter: Filter the dust particles, apply to a bad environment.
Pressure relief valve: Control gas pressure, prevent excessive pressure, damage the machine.
Silencer: reduce blower noise 5-10db, apply to a quiet environment.
Air Filter
Silencer
Pressure Relief Valve
INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube). PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the vortex air pump, especially the high-power vortex air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the vortex air pump and the box, pay attention to the ventilation and heat dissipation of the vortex air pump, and pay attention to using rubber cushioning to bear the weight of the vortex air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the vortex air pump For pipe connection, hose connection should be used to isolate vibration.
Packaging & Shipping
Power>3KW, we will pack it in strong wooden carton.
Shipping way: By sea or By air or By your agent in China.
