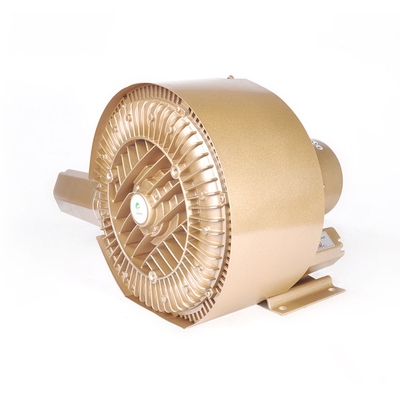

Factory Direct Sale High Quality Ring Blower For Soil Remediation Aeration Blower 2hp System

1 Piece
MOQ
$225.00(1 - 9 Pieces) $200.70(10 - 19 Pieces) $189.90(20 - 49 Pieces) $180.00(>=50 Pieces)
Price
Factory Direct Sale High Quality Ring Blower For Soil Remediation Aeration Blower 2hp System
Features Gallery Product Description Request A Quote
Features
Specifications
Customized Support: OEM, ODM
Model Number: GHBH 002 34 2R4
Application: Air Blower
Pressure: High Pressure
Power Source: Electric Blower
Product Name: Ring Blower For Soil Remediation
Frequency: 50Hz
Max Airflow: 1.6kW
Max Vacuum: 200-240/345-415Y(V)
Max Pressure: 7.5/4.3Y(A)
Rated Power: 150m³/h
Rated Voltage: -280mbar
Rated Current: 280mbar
Sound: 66db(A)
Weight: 24kg
Certification: CE, RoHS
Basic Infomation
Certification: CE, RoHS
Model Number: GHBH 002 34 2R4
Payment & Shipping Terms
Packaging Details: 1 set with pallet wrapped with poly bag then to a export carton box.
Product Description
Product Paramenters
Product Name
Factory Direct Selling 2hp High Quality Aeration Ring Blower For Soil Remediation System
Model No.
GHBH 002 34 2R4
Frequency
50Hz
Reted Power
1.6kW
Reted Voltage
200-240△/345-415Y(V)
Reted Current
7.5△/4.3Y(A)
Max Airflow
150m³/h
Max Vacuum
-280mbar
Max Pressure
280mbar
Sound
66db(A)
Weight
24kg
Certificate
CE/SGS/ROHS/TUV/ISO certificates
Inject gas, decompose organic materials into humus, and aerate and increase oxygen.
Soil improvement, composting, composting aeration system, sludge treatment equipment, sludge composting aeration, biological composting, sludge biological drying, sludge composting, aerobic composting, sludge composting, garbage composting, composting blast , Compost aeration, aerobic fermentation compost
Products Description
High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
Operational Principles:
When the blade of high pressure air blowers rotates, the wind vane causes gases to move forward and outward under centrifugal force, producing a series of spiry movements.

The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet), The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation.

When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel.

When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.
INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube). PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the air pump For pipe connection, hose connection should be used to isolate vibration.
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
GOORUI is now becoming a world-class manufacturer of premium side channel blowers and accessories. Our programme of continuous investment and innovation places us at the forefront of blowers manufacture. Goorui's philosophy is to create a partnership with our clients. We are committed to providing you with all the resources you may require with regard to your systems. Our advantages come from our efficient size: we provide the units at a very competitive price.
Enterprise Scene
Dongguan Foersheng Electric&Mechanic Co.Ltd. World leading supplier of vacuum equipment with designing.producing and marketing experienee for 18 years.Which is subordinate to Hong kong Fenglisheng Group Company Limited,located in the most famous world manufacture city.Dongguan City.to be an industrial manufacture enterprise with its own proprietary intellectual property rights.
Production Workshop
Test certificate include ISO9001 ,CE,RHOS,"Chinese trademark certificate","German trademark certificate","Dongguan city Energy saving Company","Dongguan city patent foster company ","Dongguan city high tech no logy privatization company","Guangdong provice high technology privatization company". Goorui regenerative,once come to Chinese market.deriverted from German,precise to the max,with quiet,stable performanee and long working life. In 2006.the first double stage side channel blower borned in China largely improved its air flow and pressure. Branch office in mainland China:Beijing,Shanghai,Shandong,Sichuan.Net-work in the world
wide,European,Middle est,merica,products are exported to 100 different countries andaeras. Fullfill responsiblities of enterprise,archive worldwide brand,FLS with strategic objestive "archive world wide leading vacuum brand".
