Home /Products/Heavy Duty Air Blower/Blower Single Stage 3 Phase 1500W 2HP Agriculture Aeration Ring Blower For Soil Remediation System

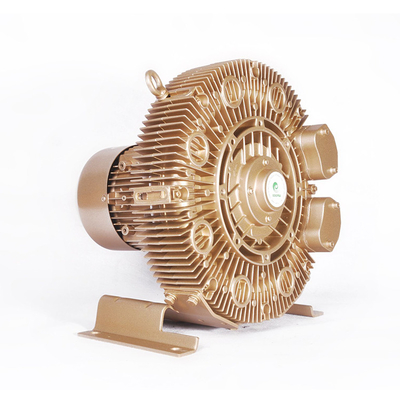

Blower Single Stage 3 Phase 1500W 2HP Agriculture Aeration Ring Blower For Soil Remediation System

1 Piece
MOQ
$333.00(1 - 1 Pieces) $326.00(2 - 4 Pieces) $319.00(5 - 9 Pieces) $300.00(>=10 Pieces)
Price
Blower Single Stage 3 Phase 1500W 2HP Agriculture Aeration Ring Blower For Soil Remediation System
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
Customized Support: OEM, ODM
Model Number: GHBG 002 34 1R5
Application: Air Blower
Pressure: High Pressure
Power Source: Electric Blower
Product Name: Agriculture Aeration Ring Blower
Frequency: 50Hz
Rated Power: 1.5kW
Rated Voltage: 200-240/345-415(V)
Rated Current: 7.5/4.3Y(A)
Max Airflow: 120m³/h
Max Vacuum: -310mbar
Max Pressure: 360mbar
Sound: 64db(A)
Weight: 26kg
Certification: CE, RoHS, ISO
Basic Infomation
Certification: CE, RoHS, ISO
Model Number: GHBG 002 34 1R5
Payment & Shipping Terms
Packaging Details: Each to be wrapped with carton box or wooden case.
Product Description
Products Description
Product name
Single Stage 3 Phase 1500W 2HP Agriculture Aeration Ring Blower For Soil Remediation System
Model number
GHBG 002 34 1R5
Stage/Phase
single stage_3 phase
Frequency
50Hz
60Hz
Rated power
1.5kw
1.75kw
Rated voltage
200-240△/345-415Y(V)
220-275△/380-480Y(V)
Rated current
7.5△/4.3Y(A)
7.6△/4.4Y(A)
Max airflow
120m³/h
145m³/h
Max vacuum
-310mbar
-340mbar
Max pressure
360mbar
320mbar
Sound level
64db(A)
68db(A)

GOORUI Side channel blowers are maintenance-free:

·External, permanently lubricated bearings ·Contactless rotating impellers ·Fan-cooled motors

GOORUI Side channel blowers are user-friendly:

·Weight-optimised design through aluminum pressure casting parts ·Possibility for a vertical or horizontal installation ·Suitability for converter operation

GOORUI Side channel blowers are environmentally friendly:

·Oil-free operation ·Low energy requirement ·Low noise emission

GOORUI Side channel blowers can be used world-wide:

·50/60Hz voltage range motors of the Iso class F ·Protection type IP55 with an integrated thermal protection switch (standard) ·CE, TUV, RoHS, CCC and ISO9001 certifications

Our advantages:

·A large selection of sizes ·Extensive accessoires ·100% check prior to delivery ·Spare parts are in stock ·Service in our facilities or on site ·Fast and reliable delivery
When the blade of high pressure air blowers rotates, the wind vane causes gases to move forward and outward under centrifugal force, producing a series of spiry movements.

The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet),The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation.

When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel.

When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.
1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).
1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump.According to the picture, you need to consult customer service.
6. The air inlet and outlet of the air pump For pipe connection,hose connection should be used to isolate vibration.
Packing & Delivery

Side Channel Blower Package

- To be packed with carton box
- To be packed with wooden case

If you have any special requirement about package,please let me know in advance.

Shipping methods

- By express, such as DHL, UPS, TNT etc
- By air cargo port to port
- By sea port to port

Also can choose the most suitable way as per your request.
Company Profile
Founded in 2002, Dongguan Foersheng Industrial M&E Co,.Ltd. is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts. Products are sold widely in the demestic and overseas market.GOORUI is the brands of our products,with many years of development, our brands are more and more popular with people. Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services. Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
