Home /Products/Mobile Air Blower/Hotels manufacturer direct selling 6010 blower DC 5V 12V 6cm automobile inflation pump power supply fishing machine low noise fan

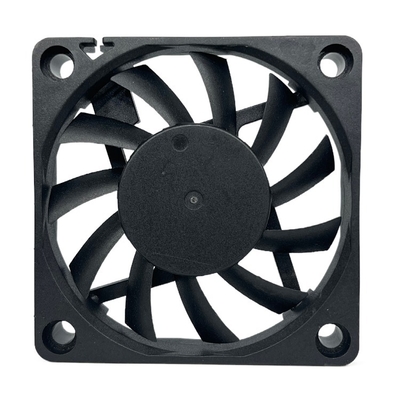

Hotels manufacturer direct selling 6010 blower DC 5V 12V 6cm automobile inflation pump power supply fishing machine low noise fan

500 pieces
MOQ
$0.80(500 - 1999 pieces) $0.79(2000 - 4999 pieces) $0.77(>=5000 pieces)
Price
Hotels manufacturer direct selling 6010 blower DC 5V 12V 6cm automobile inflation pump power supply fishing machine low noise fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Axial Flow Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Other, Advertising Company,
Customized Support: OEM, ODM
Electric Current Type: DC
Mounting: FREE STANDING
Blade Material: Plastic
Model Number: DC 6010
Voltage: 5V 12V 24V
Warranty: 1 Year
After-sales Service Provided: Online Support
Product Name: DC Axial Flow Fan
Size: 60*60*10mm
Speed + Air Volume: It Can Be Customized According To Customer Needs
Basic Infomation
Model Number: DC 6010
Payment & Shipping Terms
Packaging Details: Strips separate products and cartons are used for outer packaging.
Supply Ability: 10000 Piece/Pieces per Day
Product Description
Product Description
type
DC axial flow fan
Specification and size
60*60*10 mm
Voltage
5V 12V 24V
Optional speed
3000-5000RPM
Optional bearing
Sleeve / ball
Signal function customization
FG speed measurement Rd stall alarm PWM speed regulation
Customized waterproof grade
IP57/68
application area
Graphics card Automobile inflation pump power supply Fishing machine Video face recognition machine Integrated machine, etc
Product display
Excellent workmanship and careful design
Every detail is designed according to the principle of aerodynamics and operates at high speed with low noise
High quality material selection, safe and reliable quality
Product parameter configuration
Tip 1: if the speed or voltage or function you need is not on this list, please contact us
Notes 2：The parameters listed above are for reference itcanbe designed and manufactured accordingto customerparameterrequirements
Notes 3： Product have a detail in the approval sheet. Specifications are subject to change without notice.
Performance introduction

Ball bearing

Ball bearing: the model is generally represented by (b). Several small steel balls in the bearing rotate around the axis, so the friction is small and there is no oil leakage problem. The advantage of double ball bearing is long service life, suitable for long-term 24-hour uninterrupted operation and high-speed fan, with a service life of 50000-70000 hours.

Sleeve Bearing

Sleeve bearings generally use friction sliding sleeves (s). The fan blade axis uses lubricating oil as lubricant and drag reducer, but the lubricating oil will volatilize and cause friction. The service life is lower than that of ball bearings, and the service
life is generally 30000 hours

FG (speed output signal)

FG function is also commonly referred to as tach out. This function is mainly used to output a square wave signal from the inside of the fan, and the frequency of the signal represents the speed of the fan. Conventional four-stage fan: speed = FG frequency *30. That is, the fan speed can be read by reading the FG signal.

Rd signal (stall alarm function)

The RD function is also known as the alarm signal. RD is low when the fan is running and high when the fan is locked. Judge
whether the fan is in normal operation or locked state by monitoring the RD signal level.

PWM speed regulation function

PWM refers to pulse width modulation. It means that the frequency (period) of the pulse signal is fixed, and the width ratio (duty cycle: that is, the space ratio) of the pulse wave is changed by the size of the input signal (DC). The on cycle and off cycle of the pulse signal are changed to change the speed of the fan, so as to save energy and reduce noise.

automatically reboot

When the fan is locked, the working current of the fan will be cut off automatically, and the fan is in the state of low current, so as to protect the fan from burning due to high current. Another function of auto restart: the fan automatically outputs a
signal to start the fan every certain time. When the fan is not in the locked state, the fan will be updated, started and run normally.

Temperature control function

Normal operation is still locked. The ambient temperature of the fan is monitored through the thermistor, and the speed of the fan
is appropriately adjusted according to the temperature, so as to save energy and reduce noise.

Introduction to waterproof function

1： Glue filling process：IP68 grade The fan runs in water 2 ：Vacuum coating process：Ip55-ip68 grade The fan can run with water! The
cost is lower than glue filling
Product structure and application field
Product certificate
Packing & Delivery
FAQ
1. are you a factory or a trader
answer：we are a manufacturing plant with R & D team

2. is the quality of your products guaranteed? How do you control the quality of your products
answer：each fan has been fully tested before leaving the factory. 10 sets are randomly collected from each production line for aging at 50 ° C + / - 5 ° C for 168 hours. Monitor and test the equipment every day. The faulty unit will be analyzed and corrective actions will be taken if necessary.

3.what can you buy from us?
answer：DC cooling fan,AC axial fan,Built in cooling fan of game console,Centrifugal fan,Turbine blower EC energy saving axial flow fan

4. why should you buy from us not from other suppliers?
answer：With 10 years of design and R & D experience, we can design fans of various powers according to customer needs, with low noise, large air volume and long service life.

5. can I get samples for testing before ordering?
answer：Yes, samples will be provided for testing before ordering, and the freight will be borne by the buyer.

6.what is the delivery time?
answer：sample delivery time: 3-5 days, mass production delivery time: 2-3 weeks (depending on the quantity)

7.how many kinds of cooling fan bearings do we have at present
answer：now we have two types of fan bearings, sleeve and ball. The working time of sleeve is 30000 hours and that of ball is 50000 hours.

8.how long is the warranty
answer：we guarantee a one-year warranty
