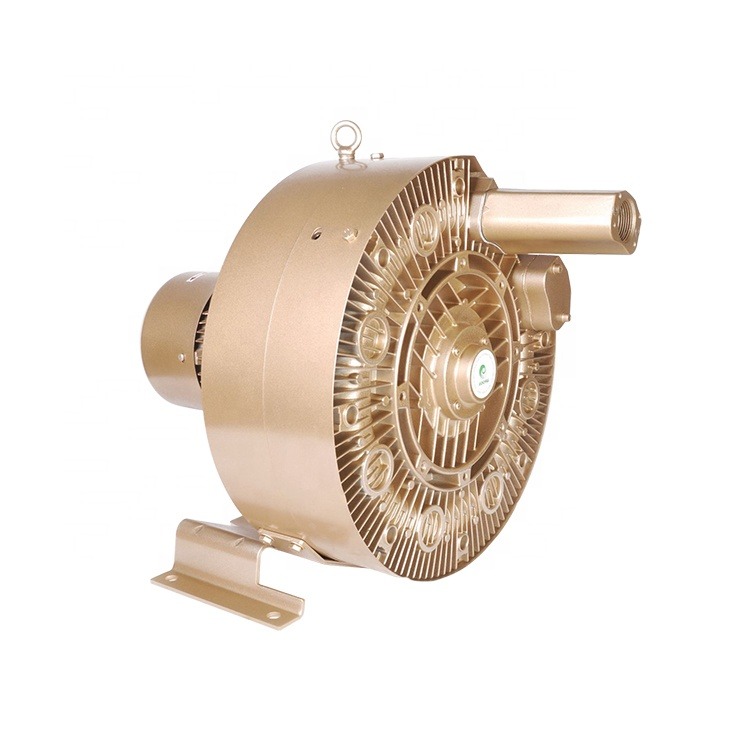

Ultra High Pressure Blower Channel Side Blowers

1 Piece
MOQ
Ultra High Pressure Blower Channel Side Blowers
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
Customized Support: OEM, ODM
Rated Voltage: 200-240V/345-415V
Model Number: GHBG 5D5 36 2R5
Application: Air Blower
Pressure: High Pressure
Power Source: Electric Blower
Product Name: Ultra High Pressure Blowers
Color: Silver Or Golden
Frequency: 50/60 Hz
Rated Power: 4kW
Rated Voltage: 345-415V
Rated Current: 9A
Max Pressure: 820mbar
Max Airflow: 145m3/h
Max Vacuum: 145mbar
Weight: 51kg
Basic Infomation
Model Number: GHBG 5D5 36 2R5
Payment & Shipping Terms
Packaging Details: 1. Packed in individual cartons. 2. Cartons will be wrapped up on the pallet with wraping film. 3. Special design and customization are acceptable as required.
Supply Ability: 3600 Piece/Pieces per Month
Product Description
Product Paramenters
Product name
Ultra High Pressure Side Channel Blowers
Model number
GHBG 5D5 36 2R5
Stage/Phase
dual stage_3 phase
Frequency
50Hz
60Hz
Rated power
4kw
4.6kw
Rated voltage
345-415△(V)
380-480△(V)
Rated current
9.0△(A)
9.5△(A)
Max airflow
120m³/h
145m³/h
Max vacuum
-500mbar
-530mbar
Max pressure
820mbar
810mbar
Sound level
65db(A)
71db(A)
Products Description

GOORUI Side channel blowers are maintenance-free:

·External, permanently lubricated bearings ·Contactless rotating impellers ·Fan-cooled motors

GOORUI Side channel blowers are user-friendly:

·Weight-optimised design through aluminum pressure casting parts ·Possibility for a vertical or horizontal installation ·Suitability for converter operation

GOORUI Side channel blowers are environmentally friendly:

·Oil-free operation ·Low energy requirement ·Low noise emission

GOORUI Side channel blowers can be used world-wide:

·50/60Hz voltage range motors of the Iso class F ·Protection type IP55 with an integrated thermal protection switch (standard) ·CE, TUV, RoHS, CCC and ISO9001 certifications

Our advantages:

·A large selection of sizes ·Extensive accessoires ·100% check prior to delivery ·Spare parts are in stock ·Service in our facilities or on site ·Fast and reliable delivery
 Working principle of regenerative blower
The impeller of Goorui Regenerative Blower was directly installed to the rotor, compress without contact. The bearing was out of turbine to make sure the stability.
Air gets in through inlet 1,then enters side channel 2,impeller will push the air under high speed. Meanwhile, centrifugalization makes the air speed outward and pressure rises.Air power increase under rotating, and the pressure rises further. At last,air gets out from outlet 4.
GOORUI side channel blowers are widely used in aeration system,metallurgical, chemical, food, electronic coating, etc. More usage of high pressure air blowers as below:
Blowing and Suction
Pneumatic conveying system
Water/Sewage Treatment
SPA Facilities
Vacuum lifting and clamping system
Foam molding system
Filling Equipment
Packaging and printing equipment
Food processing system
Plating Equipment
Bag/bottle/hopper filling system
Automation Technology
Soil improvement
Plastic and rubber industry
Handling Technology
Aquaculture
Vacuum Workholding Technology
Clamping Technology
Beverage industry
Electrical Component Manufacturer
Environmental engineering
Timber industry
Electronics/semiconductor industry
Pharmaceutical industry
UV Flatbed Printer
Hospital and laboratory equipment
Large Format Printing
CNC Equipment
Car Wash Coin-operated Vacuum Systems
CNC Engraving Machine
Textile Industry
Commerical Ducted Vacuum Systems
Plasma Cutting Machine
CNC Cutting Machine
CNC Laser Engraving Machine
CNC Woodworking Machine
Feeding Equipment
Industrial Ducted Vacuum Systems
Bio-medical Transfer Facilities
1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.
2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.
3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.
4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.
5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).
1. Flat washers and spring washers must be used to tighten the screws.
2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable.
3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.
5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump.According to the picture, you need to consult customer service.
6. The air inlet and outlet of the air pump For pipe connection,hose connection should be used to isolate vibration.
Packing & Delivery

Side Channel Blower Package

- To be packed with carton box
- To be packed with wooden case

If you have any special requirement about package,please let me know in advance.

Shipping methods

- By express, such as DHL, UPS, TNT etc
- By air cargo port to port
- By sea port to port

Also can choose the most suitable way as per your request.
Company Profile
Founded in 2002, Dongguan Foersheng Industrial M&E Co,.Ltd. is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts. Products are sold widely in the demestic and overseas market.GOORUI is the brands of our products,with many years of development, our brands are more and more popular with people. Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services. Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !
