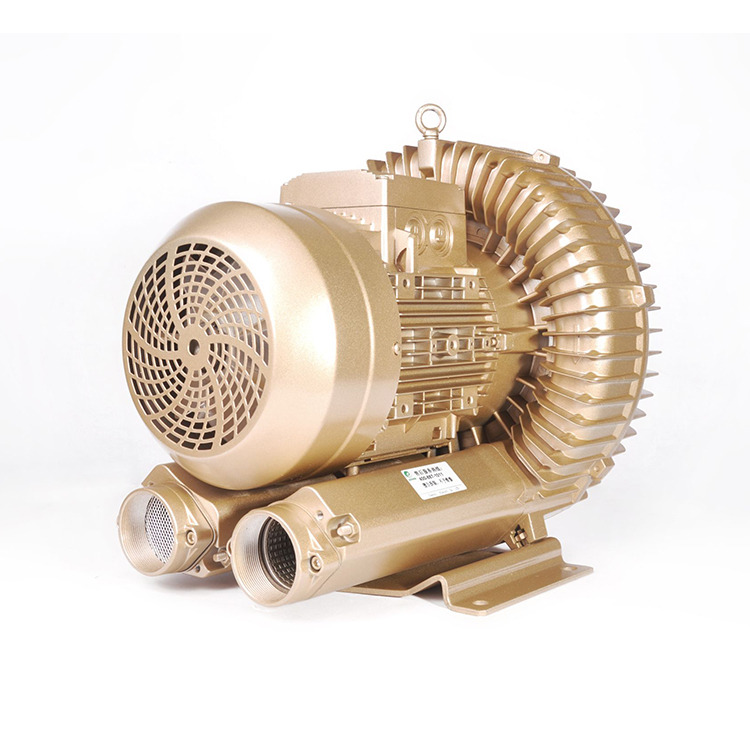

GOORUI Ring Blower For Underwater Aeration and Oxygenation, Wastewater Fermentation Treatment

1 Set
MOQ
GOORUI Ring Blower For Underwater Aeration and Oxygenation, Wastewater Fermentation Treatment
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GHBH 002 34 AR6
Application: Air Blower
Pressure: High Pressure
Power Source: Electric Blower
Product Name: GOORUI Ring Blower
Power: 1.6KW
Color: Customized
WEIGHT: 24kg
Voltage: 220-240V
Max Pressure: 125mbar
Max Airflow: 345m3/h
Max Vacuum: -125mbar
Phase: Three
Stage: Single
Basic Infomation
Model Number: GHBH 002 34 AR6
Payment & Shipping Terms
Packaging Details: 1 set with pallet wrapped with poly bag then to a export carton box.
Supply Ability: 5000 Set/Sets per Month Lateral Channel Blower
Product Description
Product Description
GOORUI Ring Blower For Underwater Aeration And Oxygenation,Wastewater Fermentation Treatment
High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
Specification
Product Name
2HP GOORUI Ring Blower
Model No.
GHBH 002 34 AR6
Frequency
50Hz
Power
1.6KW
Voltage
200-240/345-415Y(V)
Current
8.5/4.9Y(A)
Max Airflow
345m3/h
Max Vacuum
-125mbar
Max Pressure
125mbar
Sound
65db(A)
Weight
24kg
Certificate
CE/SGS/ROHS/TUV/ISO certificates
GOORUI Side channel blowers are maintenance-free: ·External, permanently lubricated bearings ·Contactless rotating impellers ·Fan-cooled motors GOORUI Side channel blowers are user-friendly: ·Weight-optimised design through aluminum pressure casting parts ·Possibility for a vertical or horizontal installation ·Suitability for converter operation GOORUI Side channel blowers are environmentally friendly: ·Oil-free operation ·Low energy requirement ·Low noise emission GOORUI Side channel blowers can be used world-wide: ·50/60Hz voltage range motors of the Iso class F ·Protection type IP55 with an integrated thermal protection switch (standard) ·CE, TUV, RoHS, CCC and ISO9001 certifications Our advantages: ·A large selection of sizes ·Extensive accessoires ·100% check prior to delivery ·Spare parts are in stock ·Service in our facilities or on site ·Fast and reliable delivery
The performance curves of Goorui blower is tested through below ways:
The above data is obtained based on laboratory testing. Actual applications will have a deviation of ±10% depending on the altitude, air density, humidity, temperature, etc.!
Operational Principles: When the blade of high pressure air blowers rotates, the wind vane causes gases to move forward and outward under centrifugal force, producing a series of spiry movements. The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet), The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation. When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel. When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.
INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube). PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the vortex air pump, especially the high-power vortex air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the vortex air pump and the box, pay attention to the ventilation and heat dissipation of the vortex air pump, and pay attention to using rubber cushioning to bear the weight of the vortex air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the vortex air pump For pipe connection, hose connection should be used to isolate vibration.
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
