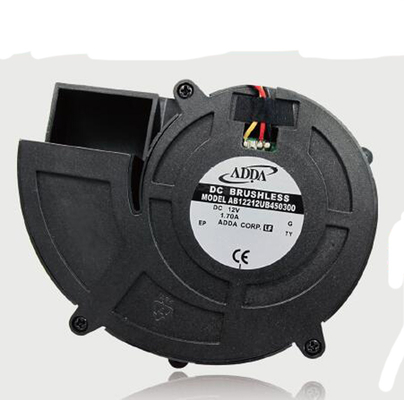

AB12032 DC Blower fan
1 | Frame size | 120X120X32mm |
2 | Bearing type | Ball/Sleeve/Hypro bearing |
3 | Rated voltage | 12V/24V/48V |
4 | Rated speed | 1800~3100RPM |
5 | Max air flow | 21.085~36.323CFM |
6 | Maxima pressure: | 10.617~40.690mmAq |
7 | Maxima noise | 46.6~57.0dBA |
8 | Functions | by impedance,by IC, FG |
9 | Safety approvals | CE CUL UL TUV |
10 | Electric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
11 | Insulation Resistance | 10M ohm between lead wire and frame(DC 500V) |
12 | Life Expectancy(Ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
13 | Life Expectancy(Hypro bearing) | >50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
14 | Operation Temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
15 | Storage Temperature | 40~75 degree C(-40~167 degree F) |
16 | Protection | Motor protection and polarity protection |
17 | Lead wire | UL1007 AWG24 |
18 | Plastic Material | Black PBT (UL94V-0) |
AB1212DB-Y0B AB1212LB-Y0B AB1212MB-Y08 AB1212HB-Y08 AB1212UB-Y08 AB1212XB-Y08
AB1224DB-Y0B AB1224LB-Y0B AB1224MB-Y08 AB1224HB-Y08 AB1224UB-Y08 AB1224XB-Y08
AB1248DB-Y0B AB1248LB-Y0B AB1248MB-Y08 AB1248HB-Y08 AB1248UB-Y08
Internationally ADDA products are well recognized and awarded while in Taiwan, ADDA is leading the industry. In 1994, ADDA was presented the 3rd National Rock Award, and since 1995 ADDA has been awarded the Symbol of Excellence Award four years consecutively. Most recently, the AD 1506 Tip Fan, for use in notebook computers, won the National Award of Excellence-Silver in 1999.
1. What is a DC Axial Fan?
An DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.
2. How to choose a DC fan?
To choose a DC fan, you should consider the points below
a. fan voltage
b. fan current
c. fan speed
d. fan airflow
e. fan noise
f. fan lifespan
3. What is a bearing?
Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
4. How do we carry out quality control?
Usually, there are two ways to monitor reliability during the manufacturing process.
a. Early Life Test
This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at 50°C+/-5°C for 24 hours.
b. On-going Reliability Demonstration
This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at 50°C+/-5°C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where necessary.
5. What can I do if we can not find the suitable fan model in the fan list?
Please contact us for customized fans.
